JEC100 10kW Kubota Diesel Marine & Yacht generator

Product Introduction

Water-Cooled (Ignition Protected for gas boat applications)the USRpower JEC80 Powered by
the reliable freshwater-cooled freshwater-cooled Kubota Z482 twin cylinder diesel engine and
100% freshwater cooling of the Asynchronous electrical end. This generator can produce up to
58 amps at 120 Volts. With a noise level rating of 52 dBa @ 7meters this is an extremely quiet
operator. This generator is ideal for most sailboats up to 42 feet or powerboats up to 36 feet.
It weights in at a fit 350 lbs.

Less weight, size and noise
Extremely quiet (52dba@7meter)
Direct driven fresh water-cooled
Permanent magnet automatic speed regulating generator
Robust twin-cylinder Kubota diesel engine
Integrated internal booster enabling high inductive load starting
Gear driven raw water pump
Safety shutdowns for all critical

FUNCTIONS
Self protected against overload
Ignition Protected for gas boat applications
Comes complete with harnesses,
remote control panel, sound enclosure and remote fuel lift pump
2 Years warranty

Engine	Original Kubota engine

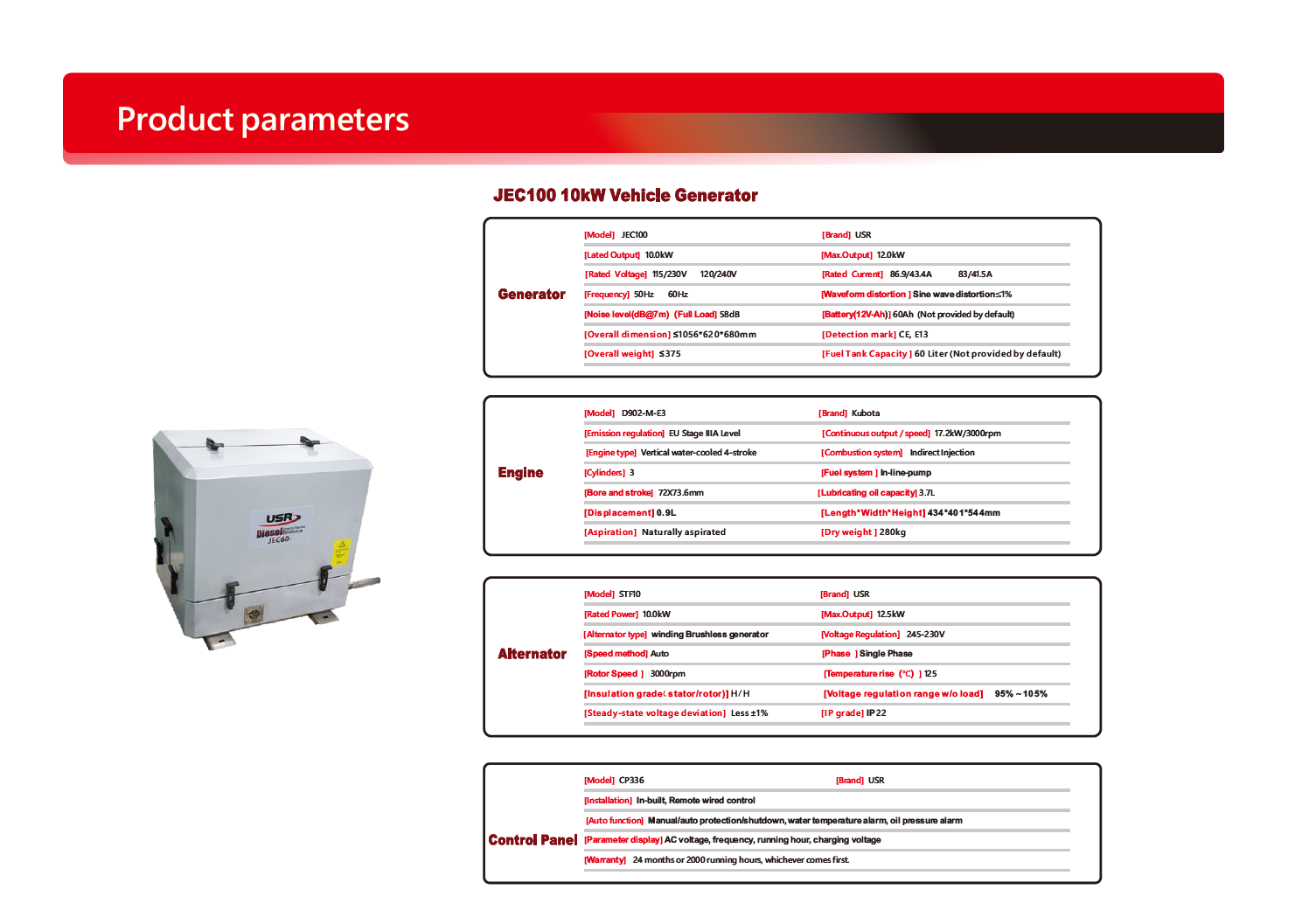

Technical Data
Maximum output (kW)	10.0
Continuous output (kW)	9.0
Net weight (kg)	286
Height (mm)	720
Depth (mm)	510
Width (mm)	650
Width with suspension (mm)	580
THDV (%)	1
Frequency (Hz ±1%)	50
Max starting current (A)	35
Engine	D722
Engine output (kW)	15.0 (20 HP)
Displacement L (cu.in)	0.719
Consumption max. (l/h)	2.3
Sound level (dBA/7m)	53-60
Guaranteed sound level (dBA)	72
